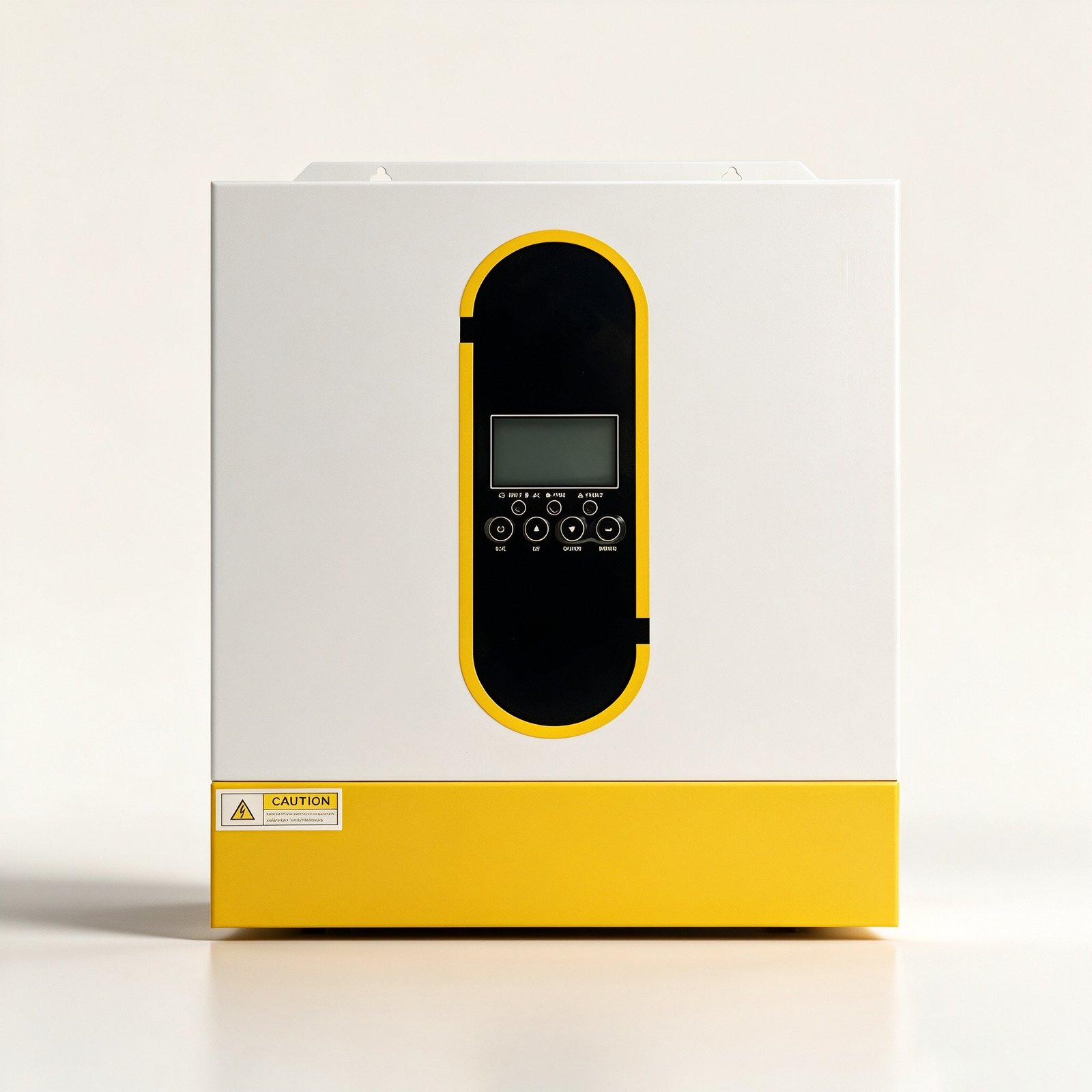

4.2 kW GEM Series Pure Sine Wave Hybrid Off-Grid Inverter
GCM Series 3.5kW off-grid hybrid solar inverter with max 500Vdc PV input and built-in 80A MPPT solar charger. Adopts pure sine wave output for stable power supply to home appliances.
Description
Description
| Model | GEM4200T-24L |
| Capacity | 4.2KVA/4.2KW |
| Lithium battery activation | Yes/By PV or Utility |
| Lithium battery communication | YES (RS485) |
| Input | |
| Normal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) |
| Frequency | 50/60 Hz (Auto sensing) |
| Output | |
| Nominal Voltage | 220/230VAC |
| Surge Power | 8400VA |
| Frequency | 50/60 Hz |
| Waveform | Pure Sine wave |
| Battery | |
| Battery Voltage | 24VDC |
| Charging Method | CC/CV |
| Solar Charge/AC Charger | |
| Solar Charger TYPE | MPPT |
| Max. PV Array Power | 6200W |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60-500VDC |
| Max Solar Input Current | 15A |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Charge Current （AC+PV） | 120A |
| PHYSICAL | |
| Dimension | 372*342*116mm |
| Net weight | 7.9 kg |
| Ingress Protection | IP21 |
